Ador Digitron 500KV Load Bank
Ador Digitron 500KV Load Bank for DG Testing
We are a company manufacturing resistors load since 1963.
Our loads are working satisfactorily in diverse industries like Defence, Transportation, Cement plant, Battery Industries, Nuclear Power Plants, etc.
We have designed and manufactured Resistor Loads upto 3MW in a single enclosure.
SPECIFICATIONS :
Voltage : 500 KW 3 PHASE, 415 VAC STAR CONNECTED
Power : 415Vac, ± 5%
Freq : 50Hz, 3 Phase
Voltage rating : 239.6V per phase (415V Line to Line)
Current rating : 696A per phase

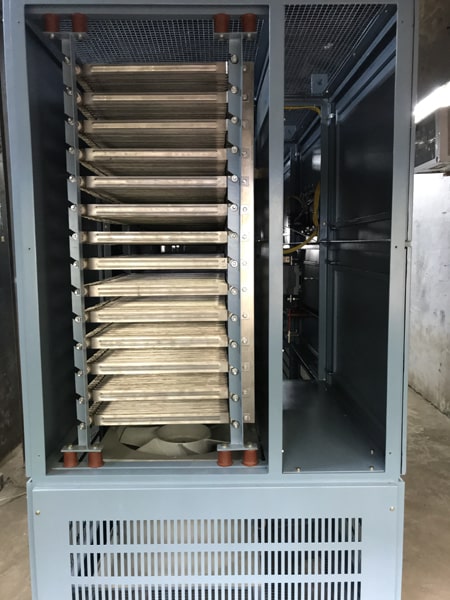

Resistance material : Fe : Cr : Al

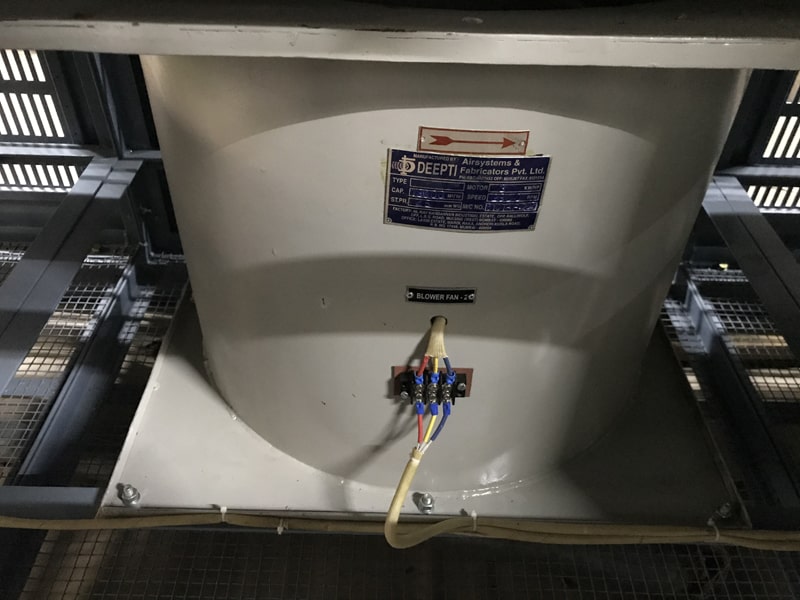

Cooling method : Forced air cooled
Rating : Continuous

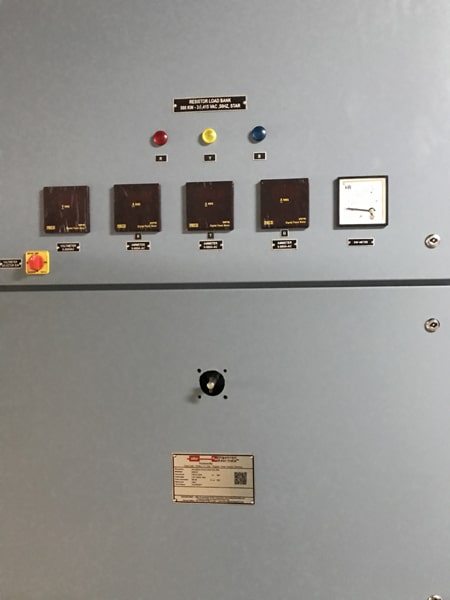

Indication Lamps : Indication lamps shall be clustered LED type (Power ON / Load Bank ON)

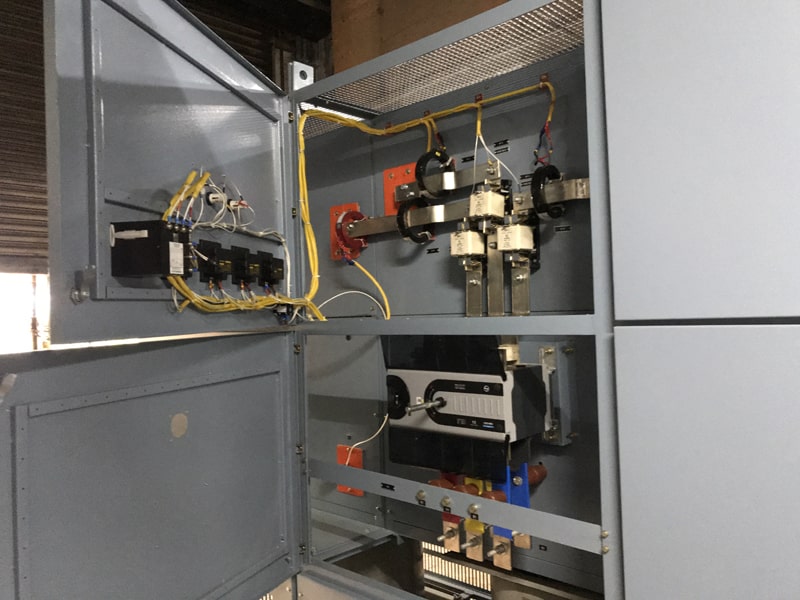

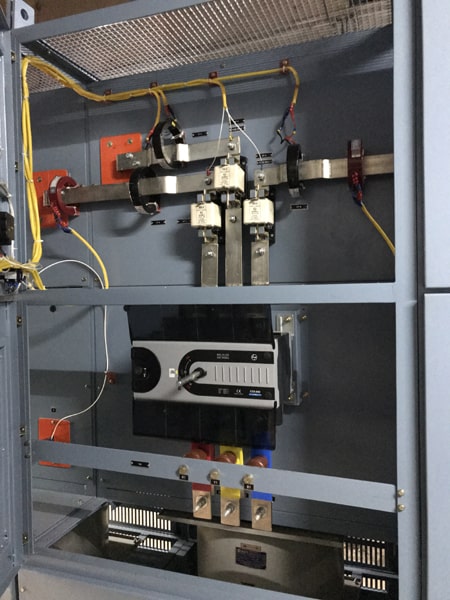

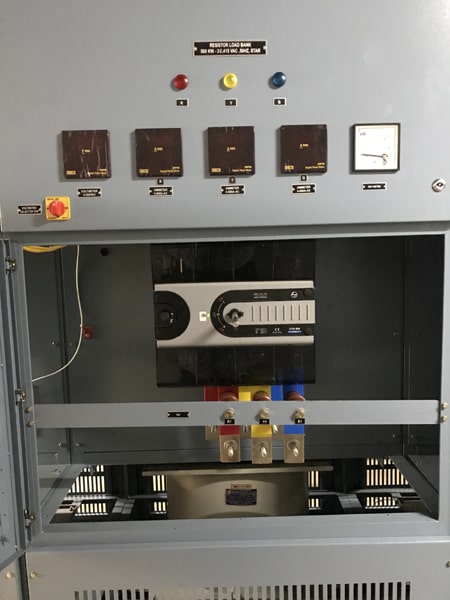

Meters : AC Voltmeter with selector switch, Three AC Ammeters with separate CT’s (Separate Ammeter for each phase), KW meter

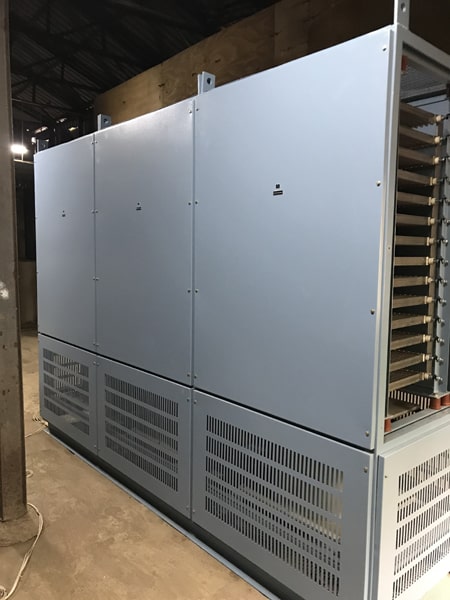

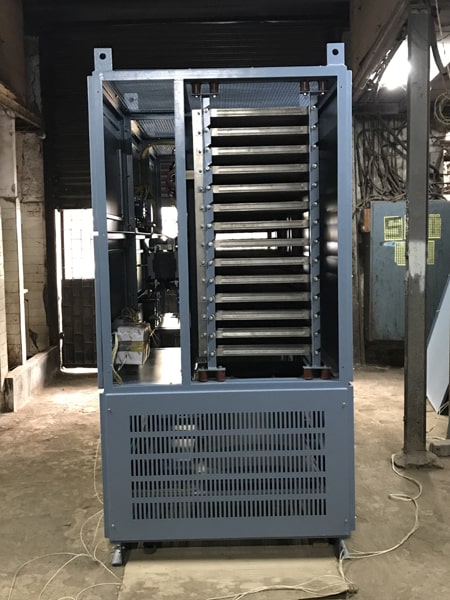

Panel construction : Free standing floor mounting type, sheet steel construction with 1.6 / 2.0 mm thickness. Paint shade shall be smoke gray, shade no. 692 of IS:5, powder coated. Panel shall have suitable louvers for ventilation. Ingress protection shall be IP-20 class. Panel shall be forced air cooled. Cooling fans shall be provided so as to take out hot air out of panel fluently
Climatic Conditions Ambient Temp : 50 Deg. C max Max. Relative Humidity: up to 90% non-condensing, not occurring simultaneously with max ambient temperature. Altitude: less than 1000Mtr above mean sea level
Panel Dimensions : L=2100mm, W=1700mm, H=2000mm approx
Cable Entry : From bottom
