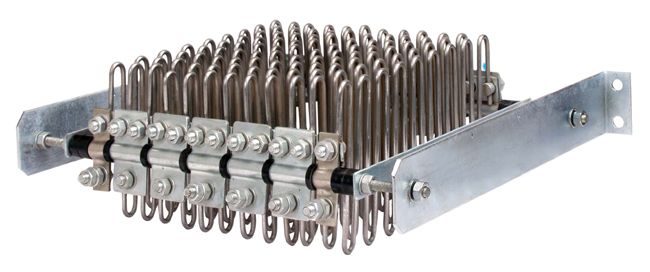

Wire / Plate Grids / Strips

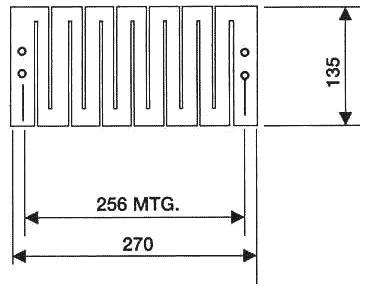

Stainless Steel Plate Grids Series 0627
FEATURES :
The design of wire and plate grid, lends itself to various advantages over conventional cast iron grids and standard wire wound resistor assemblies. In the assembly design breakable parts are excluded, resulting in robust construction. In the wire grid assemblies, the unique terminal arrangement, facilities easy replacement of individuals grid.
The assembly can tailor designed and is available in stack and panel mounting versions. This is ideal for compact design of special purpose control panels. The panel mounting versions has an added advantages of saving in interconnection and wiring.
Material : Standard-stainless steel, other alloys request.
Applications : Load Banks, Rotor Starters, Crane Controllers, Motor starting and braking resistors.
REQUEST A QUOTE
| Type | Resistance Ω±10% | Continuous Current Rating |
|---|---|---|
| PGS 7 H | 0.0075 | 220 |
| PGS 12 | 0.012 | 180 |
| PGS 15 | 0.015 | 160 |
| PGS 22 | 0.022 | 125 |
| PGS 32 | 0.031 | 105 |
| PGS 45 | 0.043 | 90 |
| PGS 65 | 0.065 | 65 |
| PGS 80 | 0.080 | 53 |
| PGS 100 | 0.100 | 49 |
| PGS 200 | 0.200 | 37 |
| WGS 18 | 0.018 | 121 |
| WGS 25 | 0.025 | 106 |
| WGS 35 | 0.035 | 92 |
| WGS 50 | 0.050 | 80 |
| WGS 80 | 0.080 | 62 |
| WGS 100 | 0.100 | 55 |
| WGS 150 | 0.150 | 45 |
| WGS 250 | 0.250 | 37 |
| WGS 370 | 0.370 | 27 |
| WGS 56 | 0.560 | 20 |
| WGS 750 | 0.750 | 14 |
| WGS 1000 | 1.000 | 14 |
| WGS 2000 | 2.000 | 11 |
